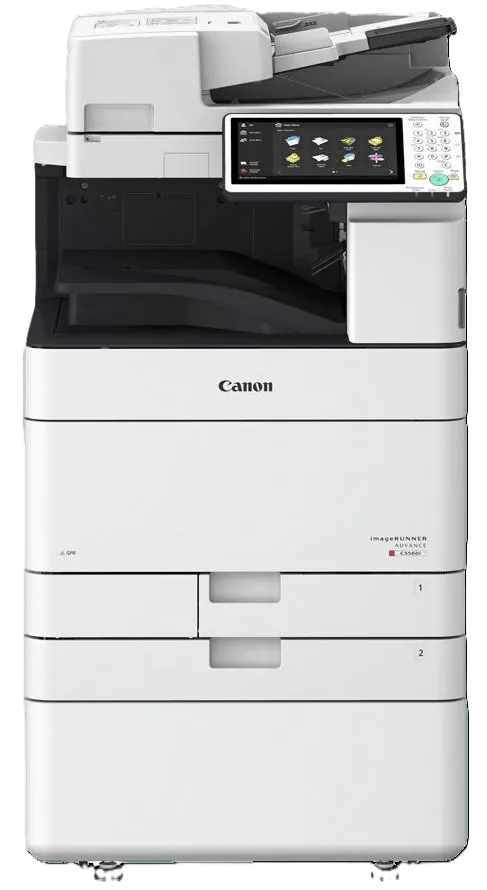

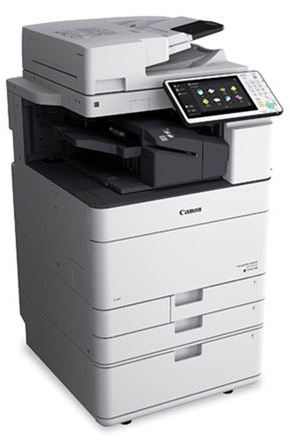

Canon Refurb. IRC-5550i Color
Machine type
A3 Colour Laser Multifunctional
Core functions
Print, Copy, Scan, Send, Store and Optional Fax
Processor
Canon Dual Custom Processor (Shared)

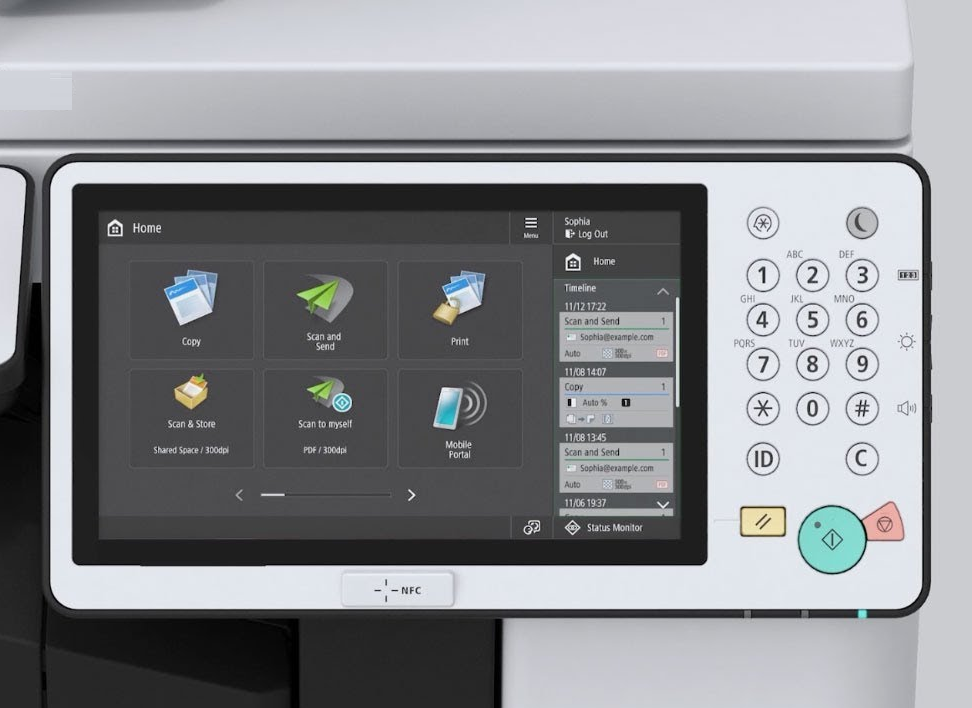

Control Panel
25.6 cm (10.1 inch) TFT LCD WSVGA Colour Touch panel
Memory
Standard: 4.0GB RAM
Hard Disk drive
Standard: 250GB
Maximum: 1TB
Mirroring Hard Disk Drive
Optional: 250GB, 1 TB
Interface Connection
NETWORK
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
Optional: NFC, Bluetooth Low Energy
OTHERS
Standard: USB 2.0 (Host) x2, USB 3.0 (Host) x1, USB 2.0 (Device) x1
Optional: Serial Interface, Copy Control Interface
Paper Supply Capacity (A4, 80 gsm)
Standard: 1.200 sheets
2 x 550-sheet cassettes, 100-sheet multi-purpose tray
Maximum: 6,350 sheets (with HIGH CAPACITY CASSETTE FEEDING UNIT-A1 + PAPER DECK UNIT-F1)
Paper Output Capacity (A4, 80 gsm)
Standard: 250 sheets
Maximum: 3,450 Sheets (with STAPLE FINISHER-Y1 or BOOKLET FINISHER-Y1 and COPY TRAY-J2)
Finishing capabilities
Standard: Collate, Group
With Inner Finisher : Collate, Group, Offset, Staple, Hole Punch*1, Staple-Free Staple, Staple On Demand
With External Finisher*2 : Collate, Group, Offset, Staple, Saddle Stitch*3, Hole Punch*4, Staple-Free Staple, Staple On Demand
*1 Requires Inner 2/4 Hole Puncher-B1 or Inner 4 Hole Puncher-B1
*2 Requires Buffer Pass-L1
*3 Requires Booklet Finisher-Y1
*4 Requires 2/4 Hole Puncher Unit-A1 or 4 Hole Puncher Unit-A1
Supported media types
Upper Cassette 1:
Standard size: A4, A5, A5R, A6R, B5, Envelope [No.10 (COM10), DL, ISO-C5]
Custom size: Min. 98.0 x 148.0 mm up to 297.0 x 215.9 mm
Lower Cassette 2:
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5]
Custom size: Min. 98.0 x 182.0 mm up to 304.8 x 457.2 mm
Multi-purpose tray:
Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, Envelopes [No. 10(COM 10), Monarch, ISO-C5, DL]
Envelope Custom Size (Min. 98.0 x 98.4 mm up to 320.0 x 457.2 mm).
Custom Size: Min. 98.0 x 139.7 mm up to 320.0 x 457.2 mm
Free Size: Min. 98.0 x 139.7 mm up to 320.0 x 457.2 mm
Supported media sizes
Upper Cassette 1:
Standard size: A4, A5, A5R, A6R, B5, Envelope [No.10 (COM10), DL, ISO-C5]
Custom size: Min. 98.0 x 148.0 mm up to 297.0 x 215.9 mm
Lower Cassette 2:
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5]
Custom size: Min. 98.0 x 182.0 mm up to 304.8 x 457.2 mm
Multi-purpose tray:
Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, Envelopes [No. 10(COM 10), Monarch, ISO-C5, DL]
Envelope Custom Size (Min. 98.0 x 98.4 mm up to 320.0 x 457.2 mm).
Custom Size: Min. 98.0 x 139.7 mm up to 320.0 x 457.2 mm
Free Size: Min. 98.0 x 139.7 mm up to 320.0 x 457.2 mm
Supported media weights
Cassettes:
52 to 256 gsm
Multi-purpose tray:
52 to 300 gsm
Duplex:
52 to 220 gsm
Warm-up Time
From Power On: 10 Seconds or less*
* Time from device power-on, until copy ready (not print reservation).
From Sleep Mode: 10 Seconds or Less
Quick Startup Mode: 4 Seconds or less *
* Time from device power-on to when key operation can be performed on the touch panel display.
Dimensions (W x D x H)
iR-ADV C5560i III/C5550i III/C5540i III/iR-ADV C5535i III: 620 x 742 x 950 mm
[iR-ADV C5560i III/C5550i III/C5540i III (BA models) : 620 x 866 x 950 mm]
Installation Space (W x D)
iR-ADV C5560i III/C5550i III/C5540i III/iR-ADV C5535i III
Basic: 980 x 1,176 mm (Right Cover Open + Cassette Drawers Open)
Fully Configured: 1,866 x 1,176 mm (Booklet Finisher-Y1 with the extension tray extended + Paper Deck Unit-F1 + Cassette Drawers open)
