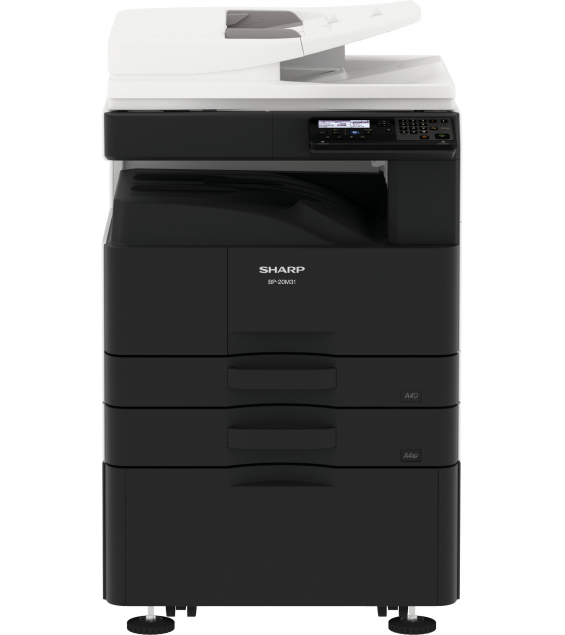

Sharp Mono A3 Copier BP-20M31
General
| Model | BP-20M31/20M28 | |
|---|---|---|
| Type | Desktop | |
| Engine speed | A4 (8 1/2" x 11")*1 | Max. 31/28 ppm |
| A3 (11" x 17") | Max. 17 ppm | |

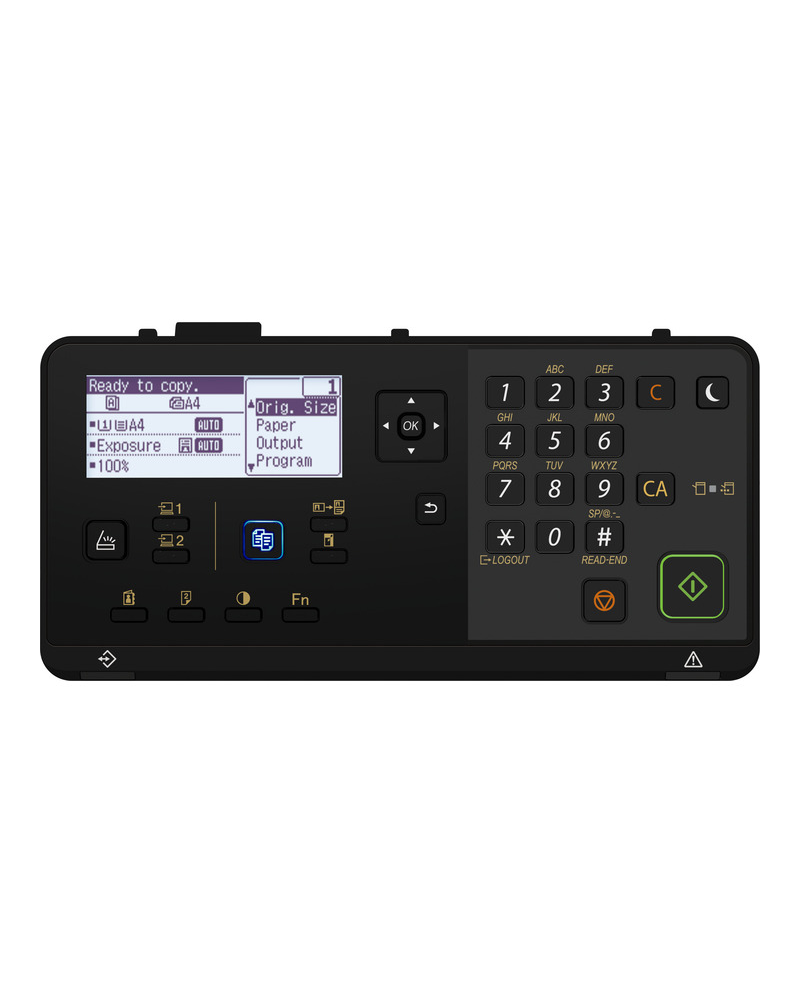

| Control panel display | 5-line LCD | |
| Paper size | Max. A3 (11" x 17"), min. A6*2 (5 1/2" x 8 1/2") | |
| Paper capacity (80 g/m2) |
Standard | 1,100 sheets (2 x 500-sheet tray and 100-sheet multi bypass tray) |
| Maximum | 2,100 sheets (1,100 sheets & optional 2 x 500-sheet tray) |
|
| Paper weight | Tray 1 | 60 g/m2 to 105 g/m2 (16 lbs bond to 28 lbs bond) |
| Trays 2–4 | 60 g/m2 to 200 g/m2 (16 lbs bond to 110 lbs index) | |
| Multi bypass tray | 55 g/m2 to 200 g/m2 (13 lbs bond to 110 lbs index) | |
| Warm-up time*3 | 20 sec. | |
| Memory | 1 GB (copy/print shared) | |
| Power requirements | Rated local AC voltage ±10%, 50/60 Hz | |
| Power consumption | Max. 1.45 kW | |
| Dimensions (W x D x H) | 599 x 608 x 743 mm (23 19/32" x 23 15/16" x 29 17/64") |
|
| Weight (approx.) | 42 kg (92.6 lbs) | |
Copier
| Model | BP-20M31/20M28 | |
|---|---|---|
| Original paper size | Max. A3 (11" x 17") | |
| First copy time*4 | 5.2 sec. | |
| Continuous copy | Max. 999 copies | |
| Resolution | Scan | 400 x 600 dpi |
| 600 x 600 dpi | ||
| Gradation | Equivalent to 256 levels | |
| Zoom range | 25% to 400% (25% to 200% using RSPF) in 1% increments | |
| Preset copy ratios | Metric | 10 ratios (5R/5E) |
| Inch | 8 ratios (4R/4E) | |
Scanner
| Model | BP-20M31/20M28 | |
|---|---|---|
| Scan method | Push scan (via control panel) Pull scan (TWAIN-compliant application) |
|
| Scan speed*5 | Colour & B/W | Max. 37 originals/min. |
| Resolution | Push scan | 100, 150, 200, 300, 400, 600 dpi*6 |
| Pull scan | 75, 100, 150, 200, 300, 400, 600 dpi 50 dpi to 9,600 dpi via user setting*7 |
|
| File formats | TIFF, PDF, JPEG*8 | |
| Scan destinations | Scan to email/desktop*9/FTP server/network folder (SMB)/USB drive | |
Printer
| Model | BP-20M31/20M28 | |
|---|---|---|
| Resolution | 600 x 600 dpi | |
| Interface | USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T, wireless LAN (IEEE 802.11 b/g/n)*10 | |
| Supported OS | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022, Windows 8.1, Windows 10, Windows 11 Mac OS 10.9, 10.10, 10.11, 10.12, 10.13, 10.14, 10.15, 11, 12, 13, 14 |
|
| Network protocols | TCP/IP | |
| Printing protocols | LPR, Raw TCP (port 9100), FTP for downloading print files, IPP, SMB, WSD | |
| PDL | Standard | PCL 6 emulation |
| Option | PostScript 3 emulation | |
| Available fonts | 80 fonts for PCL, 136 fonts for PostScript 3 emulation | |
